| General.

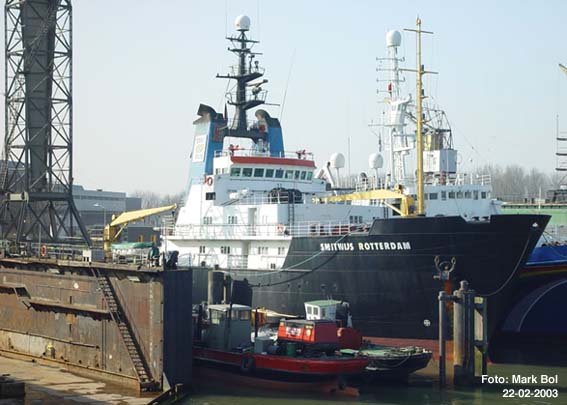

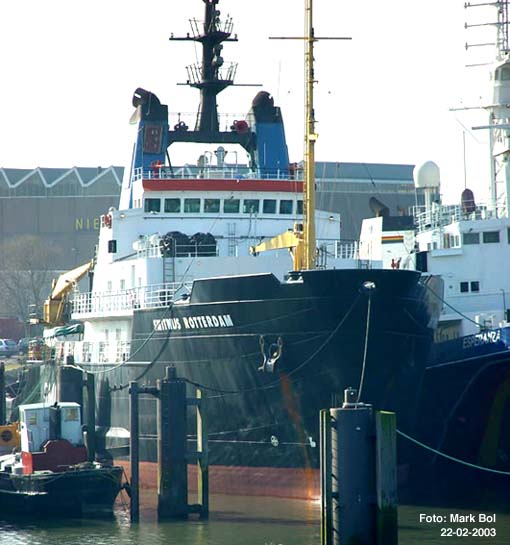

The Smit Rotterdam, as well as her sistership Smit London, is a 22.000
ihp ocean-going multi-purpose tug and has been designed to perform towages
with heavy objects over long distances for the offshore industry, for salvage
assistance to ships in distress and to carry out anchor-handling operations.
The names are recently (1998) changed in Smitwys Rotterdam and Smitwys
London.
Propulsion
The propulsion machinery consists of two Stork-Werkspoor TM 410 turbocharged,
four stroke, single acting, unidirectional diesel engines. Each engine
drives a fourblade variable pitch propeller turning in a fixed nozzle.
The machinery may be remotely controlled from the bridge deck as well as
from an airconditioned control room in the engine room.
Manoeuvrability
The twinscrew-arrangment combined with two rudders and a powerful 800 hp
bow-thruster guarantees excellent manoeuvrability. The wheelhouse is situated
amidships which allows an excellent view over the aftdeck as well as forward,
for bridge controlled manoeuvring, which is possible from four positions.
Dimensions:
|
Length o.a.
|
|
74.75 m
|
|
Beam o.a.
|
|
15.68 m
|
|
Depth
|
|
7.60 m
|
|
Draft (max.)
|
|
6.40 m
|
Port of registry: Rotterdam NL
Callsign : P.H.P.O.
Built by: De Merwede, Hardinxveld-Giessendam NL
Year of construction 1975
Max.speed: 17 knots.
|
